About This

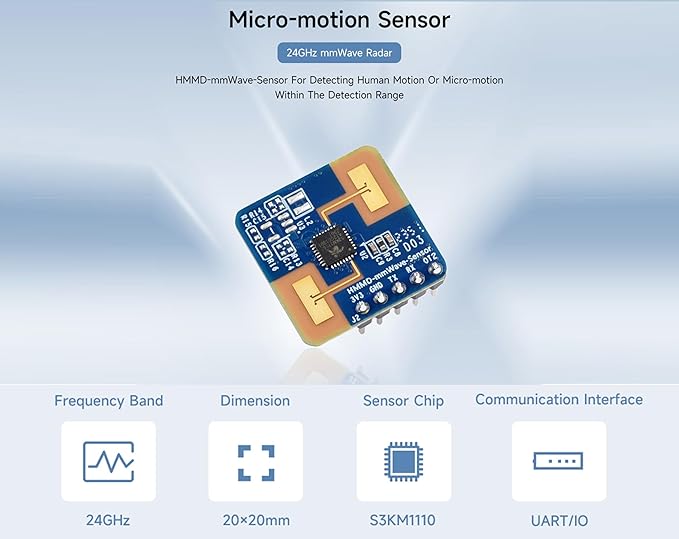

• The HMMD-mmWave-Sensor is a human micro-motion sensor, adopts Frequency Modulated Continuous Wave (FMCW) technology to detect and identify moving, standing, and motionless human body.
• Combining radar signal processing with accurate human detection and ranging algorithms, supports configuring the sensibility for each range independently to improve anti-interference performance.
• Based on AIoT mmWave Sensor SoC S3KM1110, onboard high performance 24GHz 1T1R antennas. Onboard MCU and built-in human micro-motion sensing algorithm for accurate detecting of moving, micro-motion, and standing human.

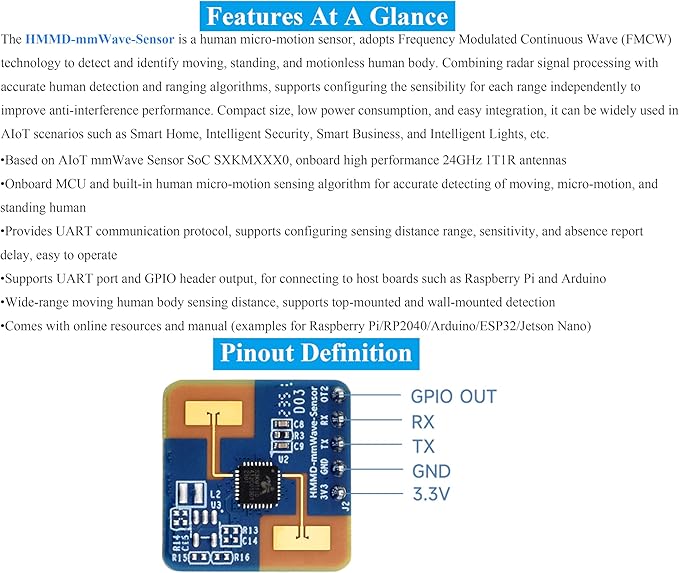

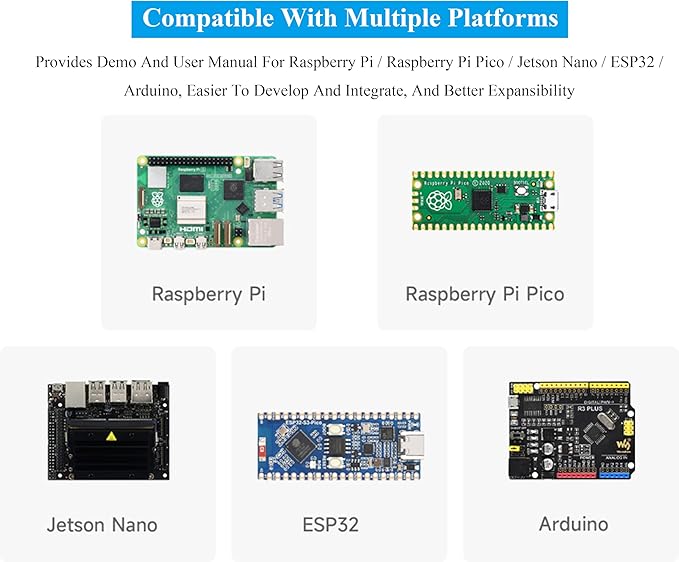

• Provides UART communication protocol, supports configuring sensing distance range, sensitivity, and absence report delay, easy to operate. Supports UART port and GPIO header output, Compatible with Raspberry Pi / Pi Pico / Jetson Nano / ESP32/ Ar-dui-no.

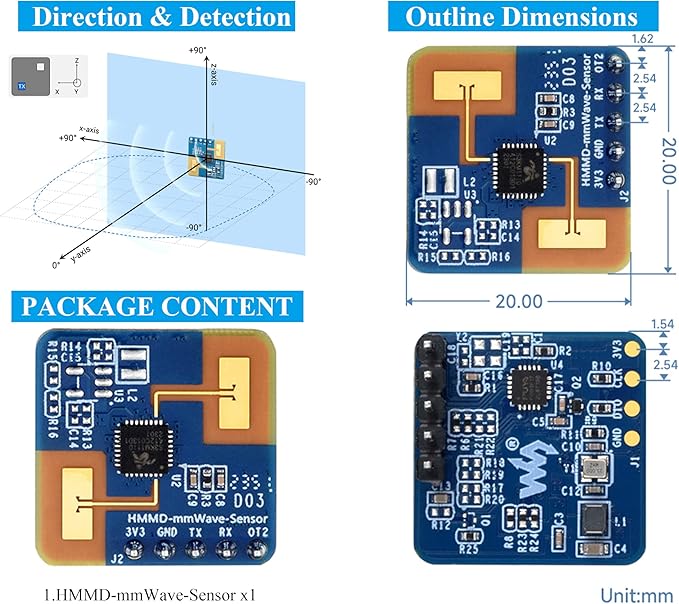

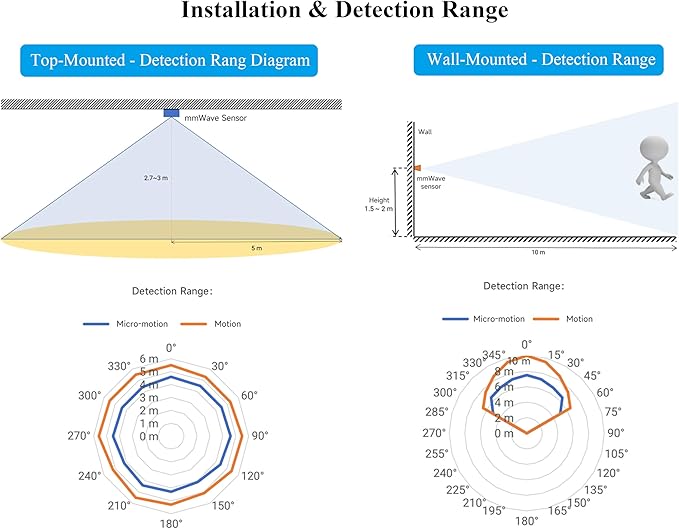

• Wide-range moving human body sensing distance, supports top-mounted and wall-mounted detection. Compact size, low power consumption, and easy integration, it can be widely used in AIoT scenarios such as Smart Home, Intelligent Security, Smart Business, and Intelligent Lights, etc.

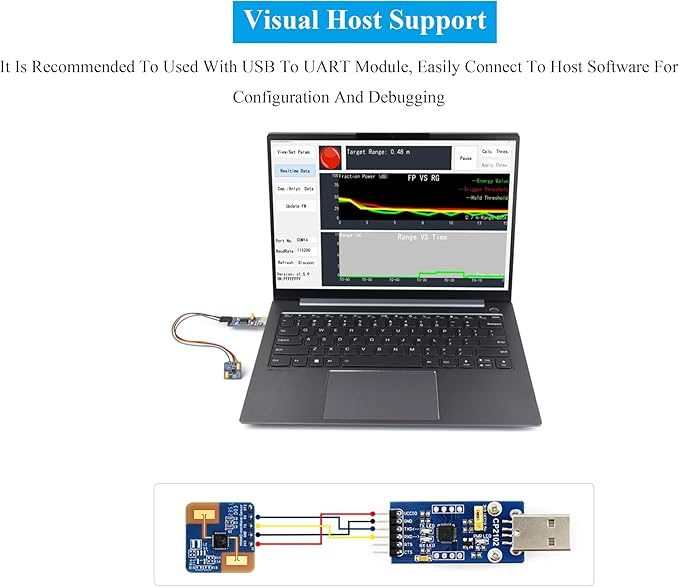

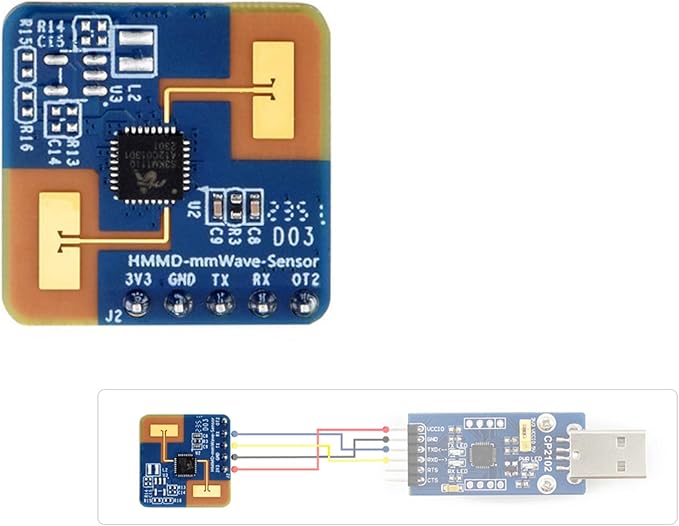

• Hardware Test: It is Recommended to used with USB to UART module, easily connect to host software for configuration and debugging (recommend CP2102 and FT232 kernel-driven TTL modules)
• Comes with online resources and manual: bit.ly/4e0yvzb

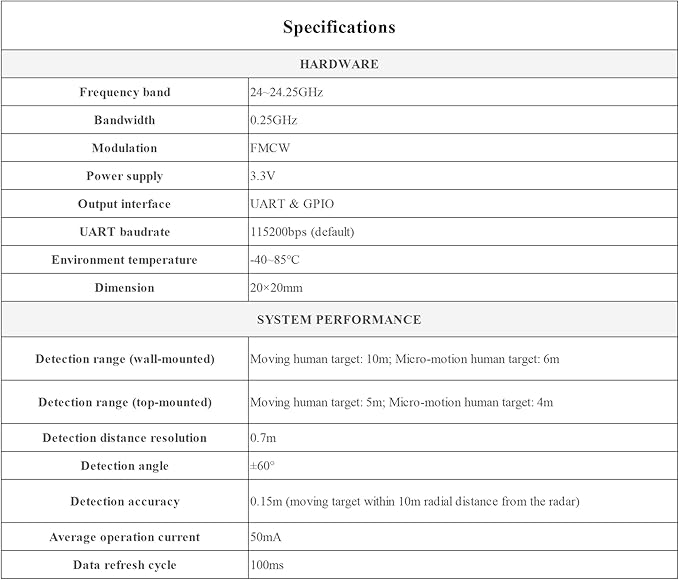

Overview

• Brand : UeeKKoo
• Frequency Bands Supported : 24 GHz
• Power Source : USB Powered
• Voltage : 3 Volts (DC)
